Product Description
World’s most compact 5G Smartphone for Zone 0/Zone 1/Division 1

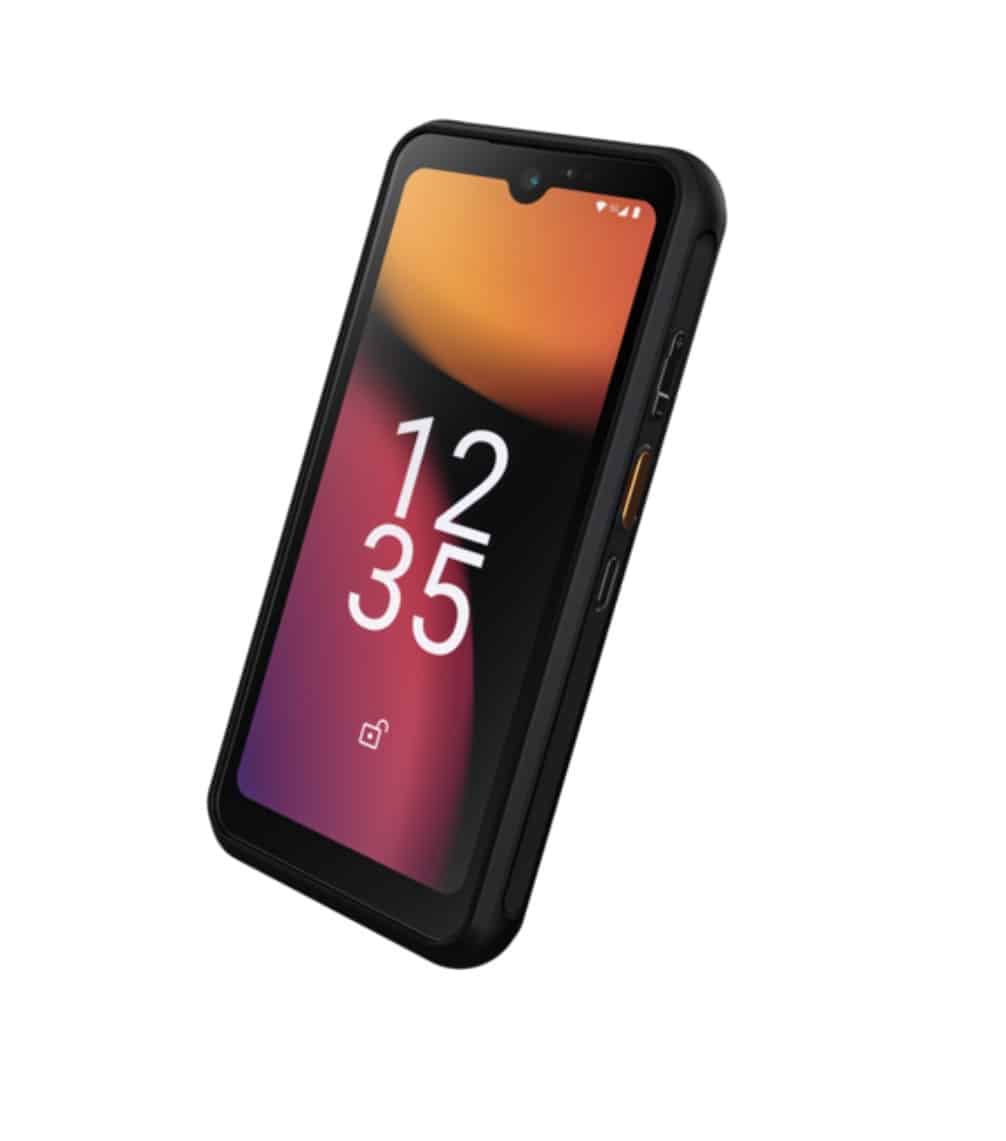

Engineered for the utmost safety and performance in hazardous environments, the BARTEC SP9EX1 Smartphone is synonymous with reliability. Combining a robust yet refined design, it balances ruggedness with elegance, ensuring functionality without compromise. As the world’s most compact 5G smartphone for ATEX/IECEx Zone 0/1/21 and NEC Class I, II, III, Division 1, it sets a new standard in hazardous area communication.
With a broad range of accessories, Android 13TM, and comprehensive lifecycle support, the BARTEC SP9EX1 Smartphone ensures reliable performance from deployment throughout its lifespan, delivering exceptional safety and efficiency in even the most challenging environments.
Features & Benefits
- Compact and lightweight: Designed and optimized for all-day productivity and one hand use.
- Intrinsically safe design: Over 1,000 dedicated components ensuring ex protection.

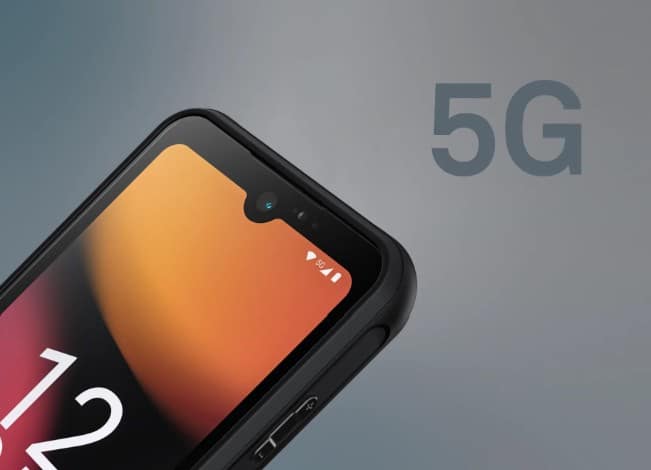

- Fast 5G network connectivity: Qualcomm® QCM6490 processor supporting both public and private 5G network connectivity.
- Low-light optimized camera: 48MP main camera and 8MP front camera for video calls.
- Rugged: MIL-STD-810H and IP68 rated for water and dust resistance
Hardware Specifications
- Processor: Qualcomm® QCM6490 Octa Core 2.7 GHz
- Memory (RAM): 8 GB
- Mass Storage: 128 GB
- Display: 6.1″ AMOLED
- Resolution: 1080 x 2340 pixels
- Front Glass: Gorilla® Glass Victus® (generation 8)
- Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
- Size (L x W x H): 168.7 mm x 83.4 mm x 17.9 mm (6.6 inch x 3.3 inch x 0.7 inch)
- Weight (with battery): 350 g (0.77 lb)
- Battery: Lithium-ion battery 3.68 V/4300 mAh (15.8 Wh)
Connectivity and Network
- SIM: Dual SIM (Nano SIM + eSIM)
- Wireless Connections: WiFi 6, 5G
- Radio Frequency Band:
- 5G NR (Bands: 1-3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 48, 66, 71, 77, 78)
- LTE (Bands: 1-5, 7, 8, 12, 13, 17, 20, 28, 38, 40, 41, 48, 66, 71)
- UMTS (Bands: 1, 2, 4, 5, 8)
- GSM (Bands: 850, 900, 1800, 1900)
- WLAN-WiFi: Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, 2×2 MU-MIMO, Dual band Simultaneous (up to 2042 Mbps data rate and 160 MHz bandwidth)
- Bluetooth: Bluetooth® 5.2 (including Low Energy long range and multiple broadcasts)
- GNSS: GPS, A-GPS, Glonass, Galileo, and BeiDou
- NFC: Read/write NFC tags (e.g., ISO 14443 Type A), contactless payments, and card emulation
Camera and Audio

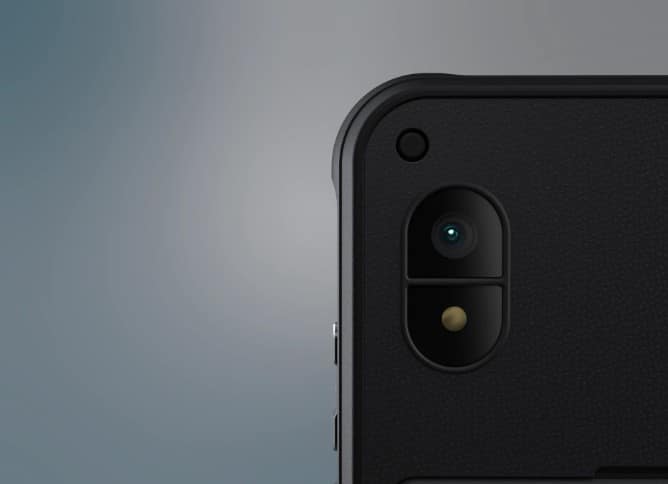

- Back Camera: 48 MP with Auto Focus
- Front Camera: 8 MP

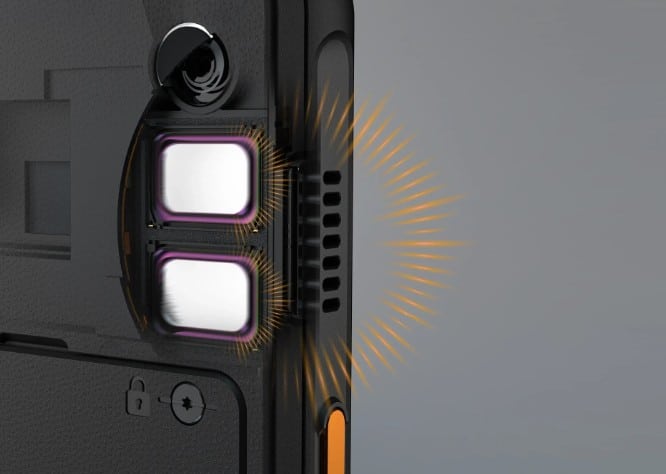

- Voice & Audio: Two microphones, Vibrate alert, Speaker, Bluetooth wireless headset support, High-quality speakerphone
- Notifications: Audible tone, multi-color LEDs, vibration
Additional Features and Accessories
-
- Operating System: Android 13TM
- Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
- Protection Class (IEC 60529): IP68
- External I/O: Charging pins, USB-C Port
- Sensors: Accelerometer/Gyroscope, Magnetometer/Compass, Pressure/Barometer, Proximity, Ambient light
- Buttons: 1x on/off button, 2x programmable function button (for PTT, Emergency call or other functions), 1x volume buttons (+/-)
- Scope of Delivery: BARTEC SP9EX1 Smartphone, Battery, Battery tool, USB-C cable, Quick Start Guide
- Required (not included): USB-C Charger (e.g., Wall Charger Type G7-S0Z0-0014/0015/0016/0017)
