Product Description

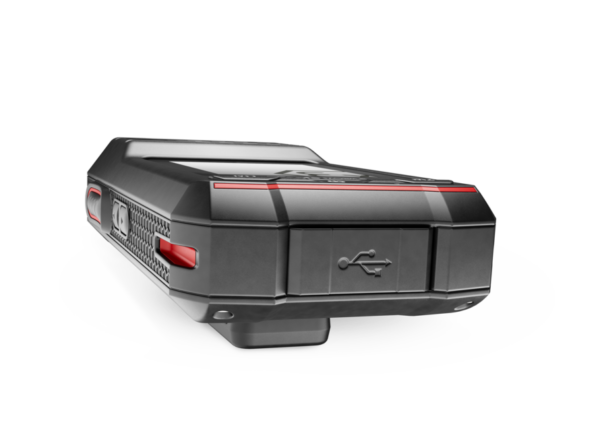

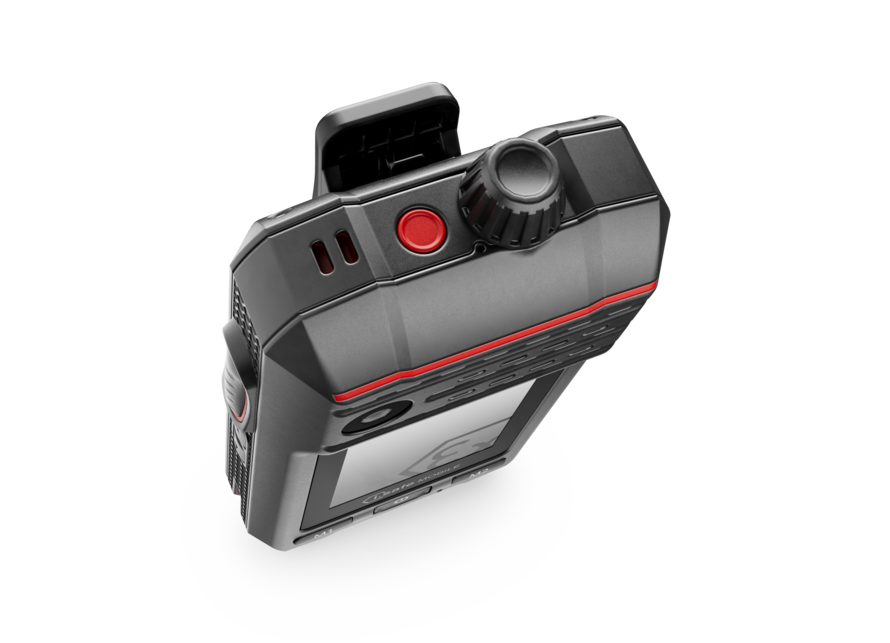

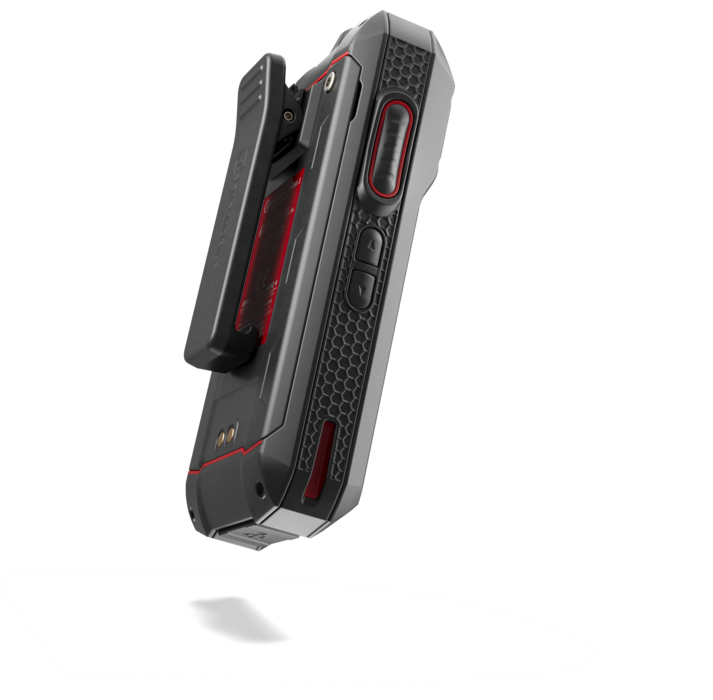

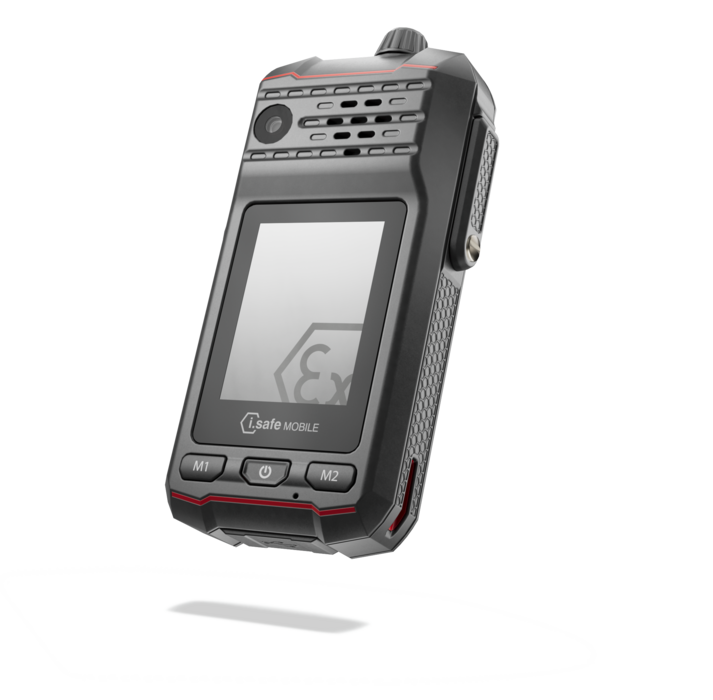

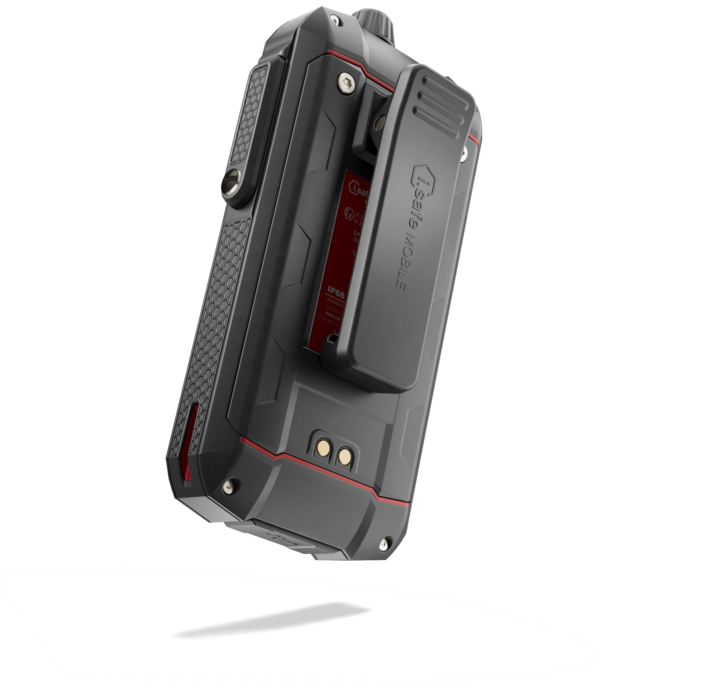

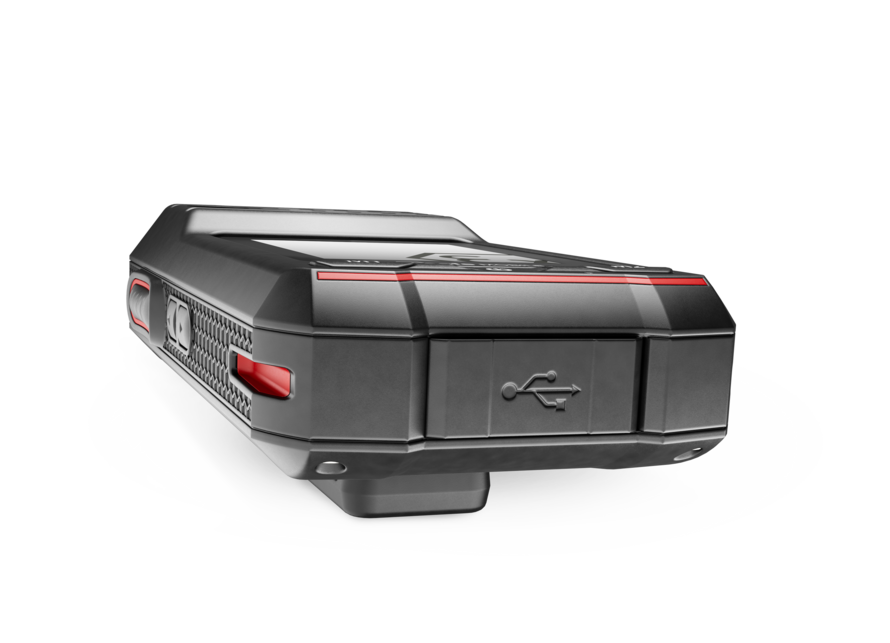

The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 1/21. A gateway makes the IS440.M1 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. For the secure integration of different radio technologies and seamless team communication in mining.
You can download selected apps that are compatible with the device directly from the pre-installed App World and update them regularly. The App World contains product-related, selected push-to-talk and MDM solutions.
Advantages
- 8-pin ISM interface for optional audio accessories
- Integrated belt clip for safe carrying
- Channel selector e.g. for PTT applications
- Programmable side key (e.g. for PoC/PTT)
- Programmable red key (e.g. for lone worker protection/SOS)
- Powerful 4800 mAh battery for extreme runtime as an optional accessory
- Amplified loudspeaker for noisy work environments
- Additional programmable buttons, M1 & M2, assignable via Button Ap
Technical Features
| Operating system | ISM-OS |
|---|---|
| Processor | Qualcomm® QCM6490 Octa Core |
| Memory | 4 GB RAM 64 GB internal memory |
| Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Dimensions | Size: 136,6 x 70 x 32 mm Weight: 307 g |
| Display | 2,4″ (6,096 cm) Corning® Gorilla® Glass V3 |
| Battery | 2400 mAh replaceable |
| Camera | 8 MP AF front |
| Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
Certifications
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
What’s in the box
- 5G Radio
- Battery
- Display Protection Foil
- i.safe PROTECTOR 2.0
- Power Adapter universal
- Screwdriver
- Safety Instructionsl
