Product Description

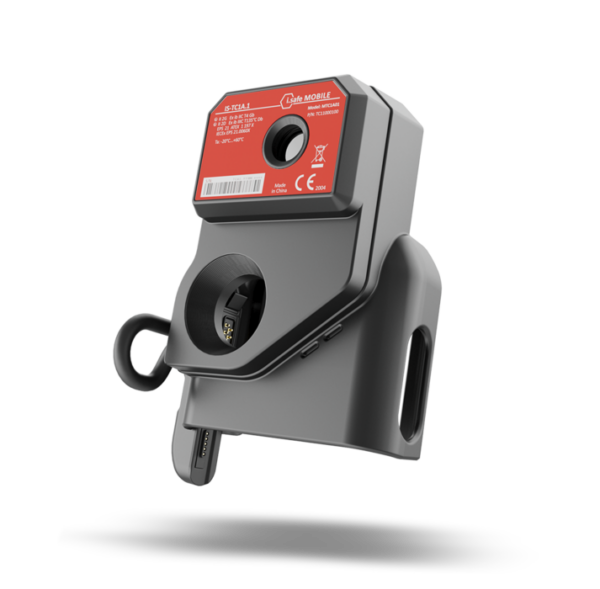

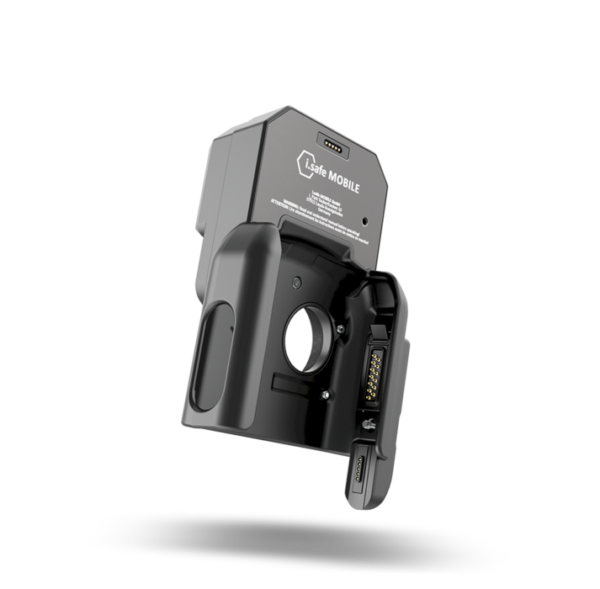

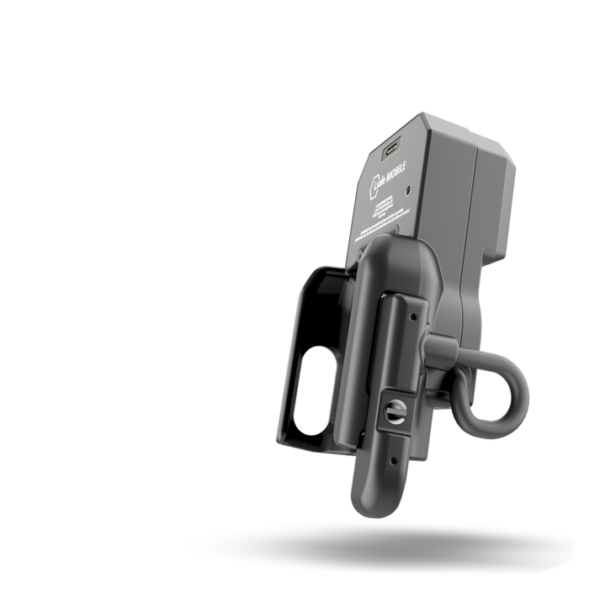

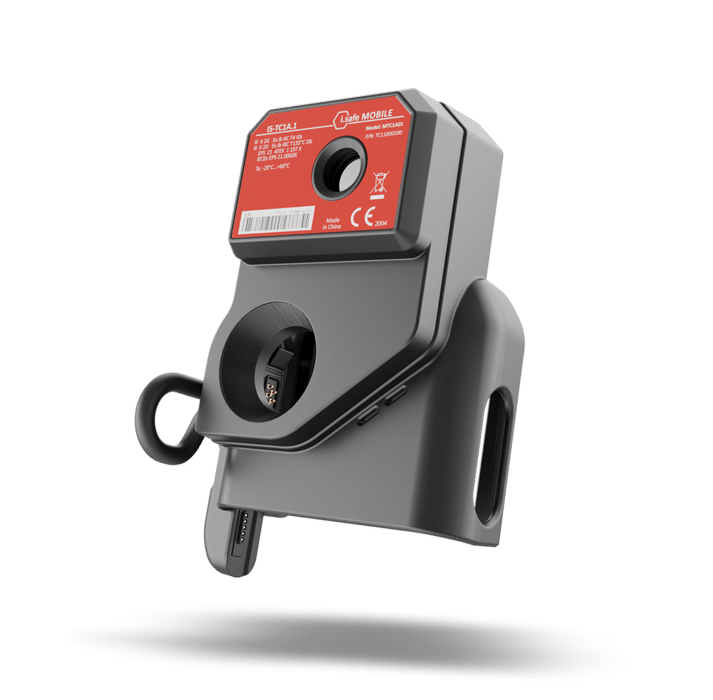

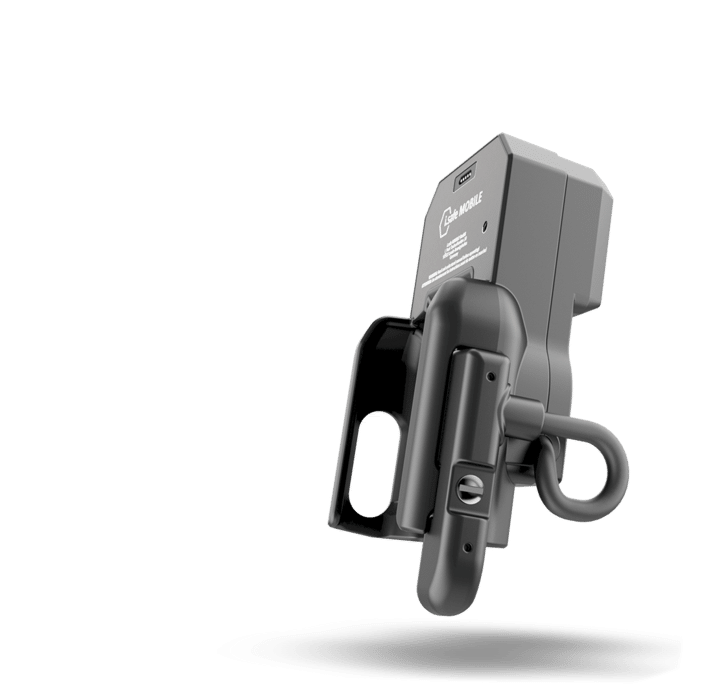

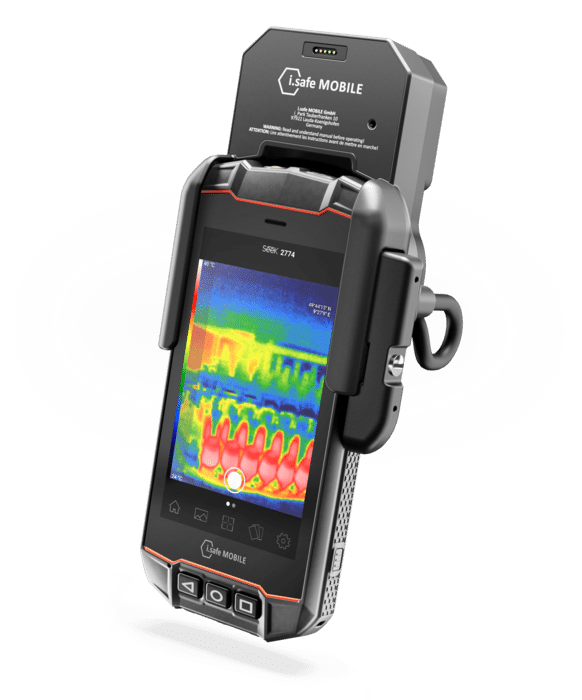

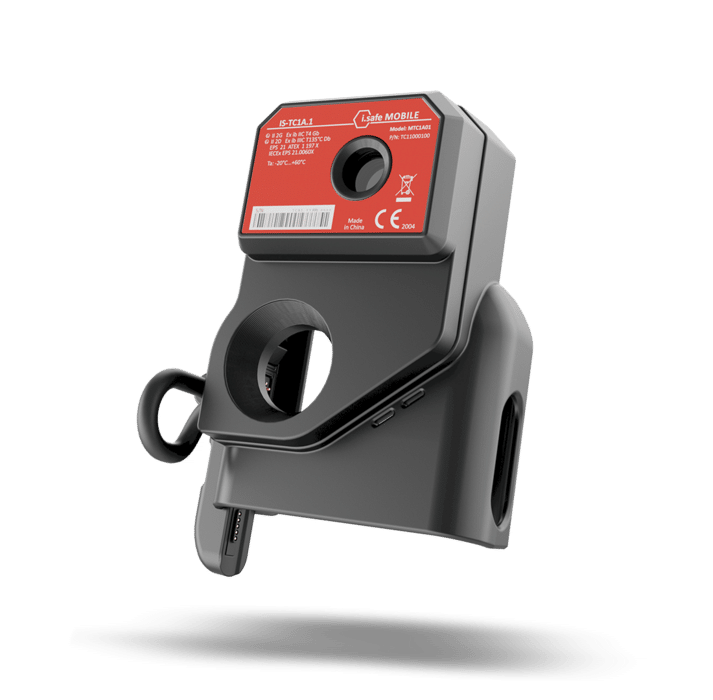

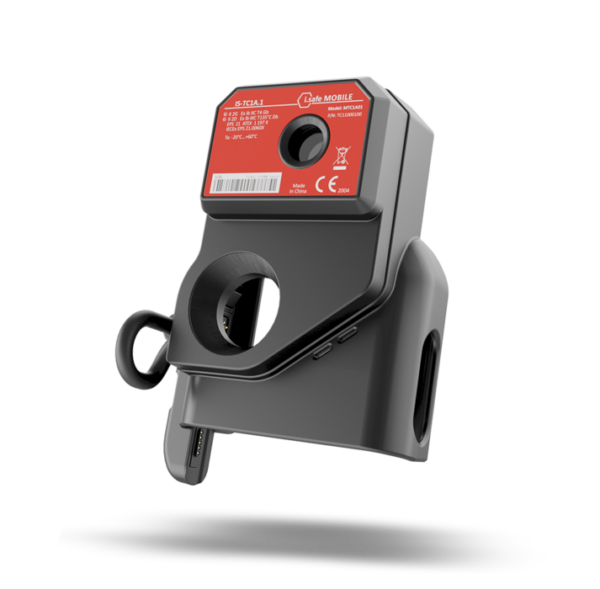

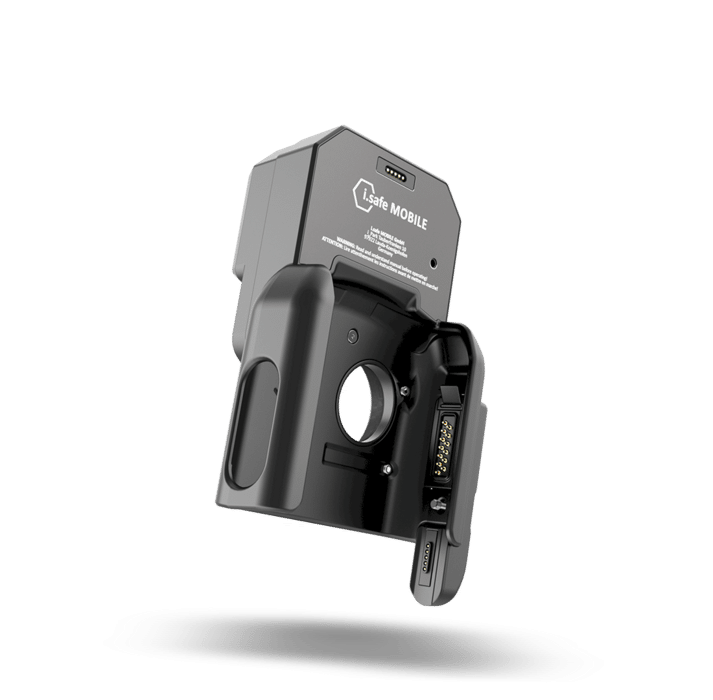

The thermal camera IS-TC1A.1, in combination with the industrial smartphone IS530.1 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.1 smartphone.
Advantages
- Capture, analyze and document thermal images
- Direct data transfer via multifunctional (ISM) interface
- Direct interface connection with the device, no Bluetooth® necessary
- Power supply via the connected device, therefore no battery necessary
Technical Features
| Sensor resolution | 200 (h) x 150 (v) 30000 pixel FixFocus Digital zoom via App |
|---|---|
| Sensor sensitivity | 65 mK (typical) |
| Frame rate | <9 Hz bis 32 Hz |
| Scene dynamic range | -40 °C bis 330 °C |
| Temperature accuracy | ±7 °C and 7 % (at 5 °C to 140 °C) ±10 °C and 10 % (at 140 °C to 330 °C) |
| Field of view | 35° (HFOV) 26° (VFOV) |
| Detection range | up to 300 m |
| Recognition range | up to 75 m |
| Identification range | up to 25 m |
| Dimensions | Size: 112,0 x 82,0 x 50 mm Weight: 195 g |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
Certifications
ATEX (Europe) approved
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
II 2D Ex ib IIIC T135°C Db
IECEx (International) approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIIC T135°C Db
What’s in the box
- Thermal camera
- Safety Instructions
- Quick Start Manual
