Product Description

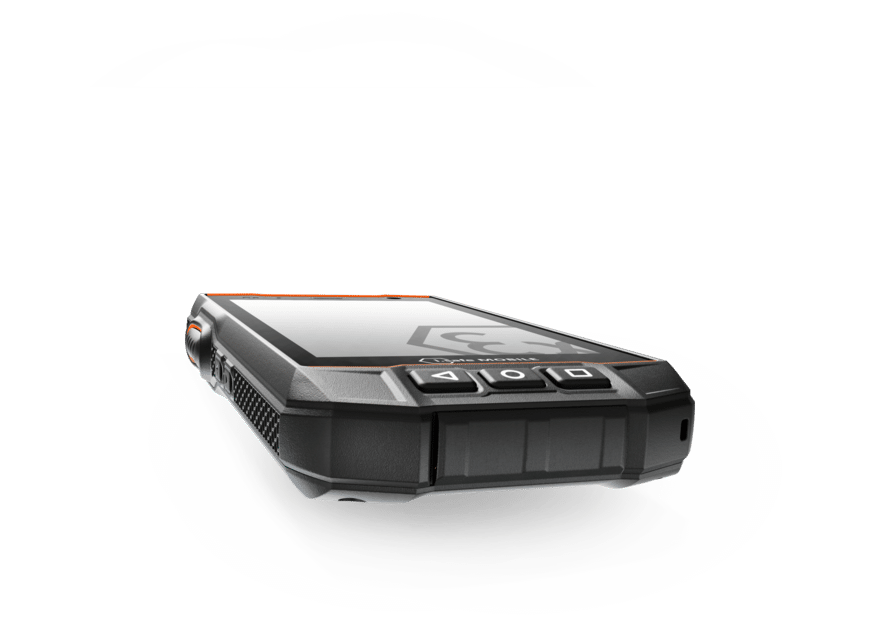

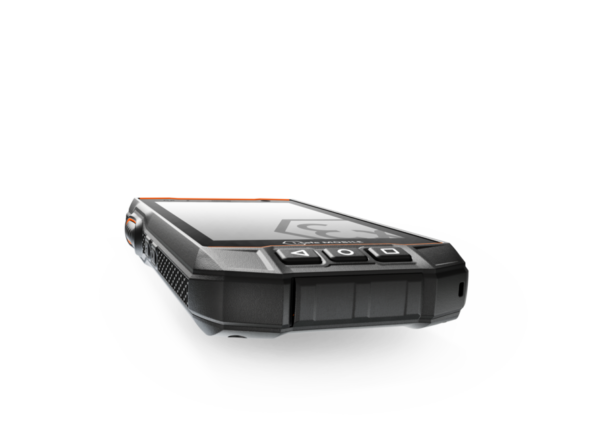

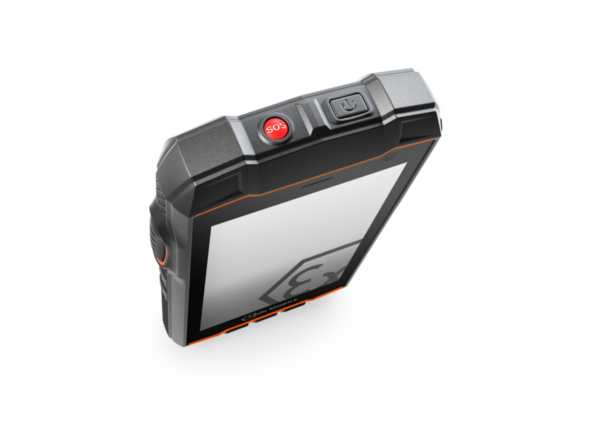

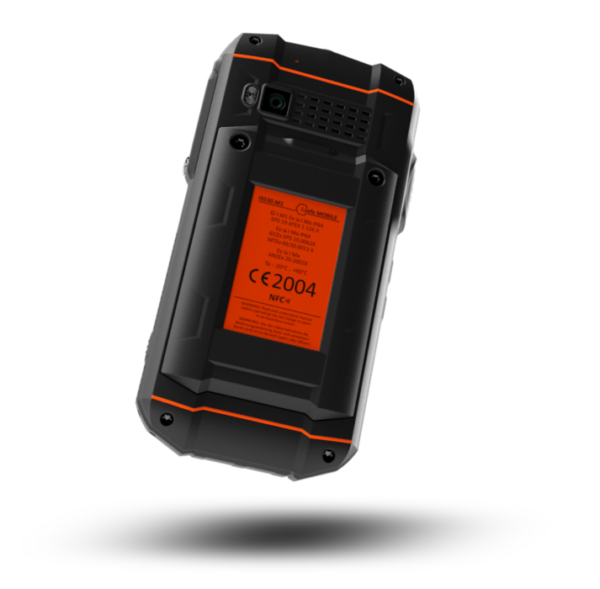

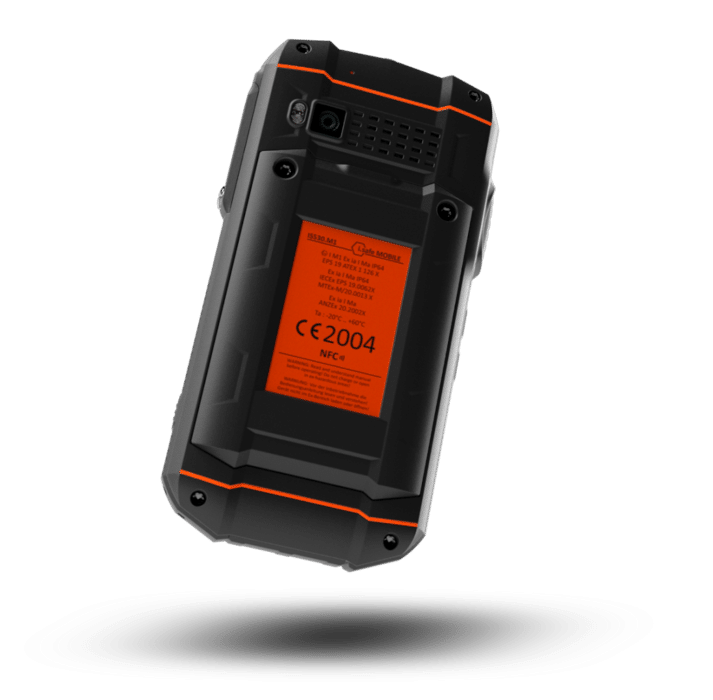

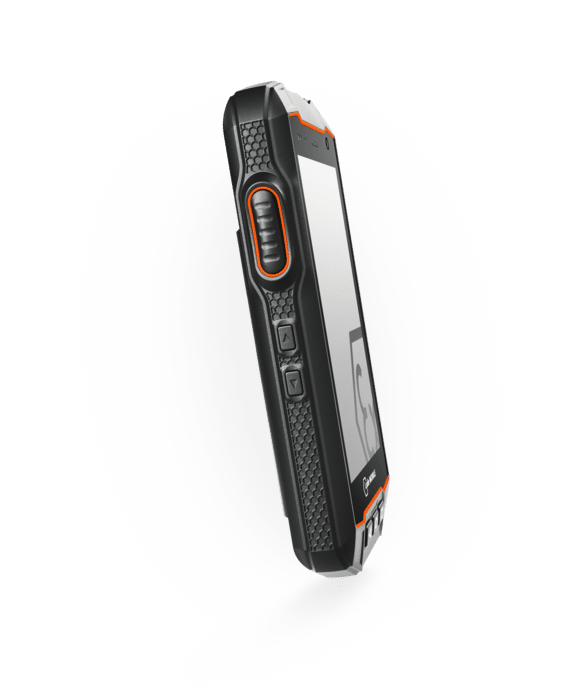

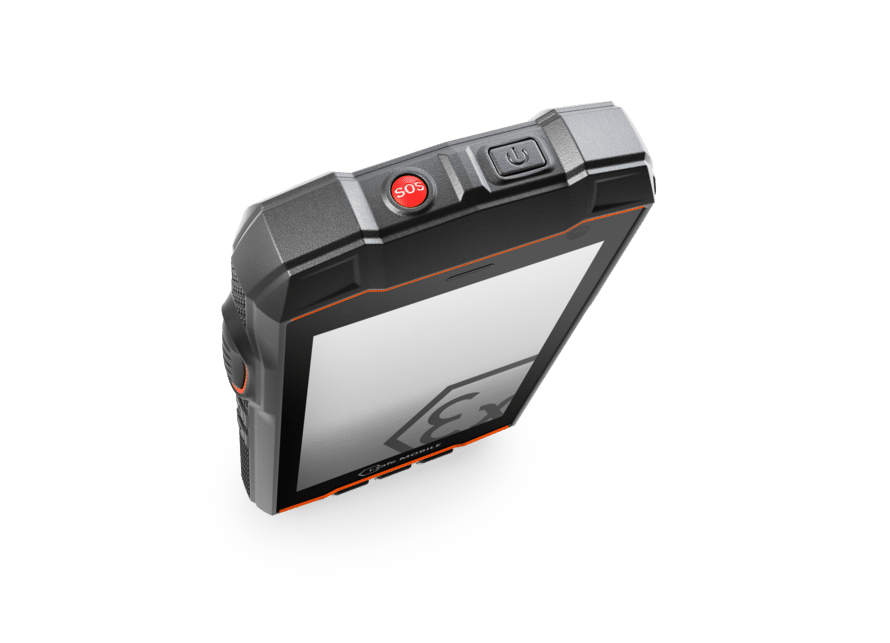

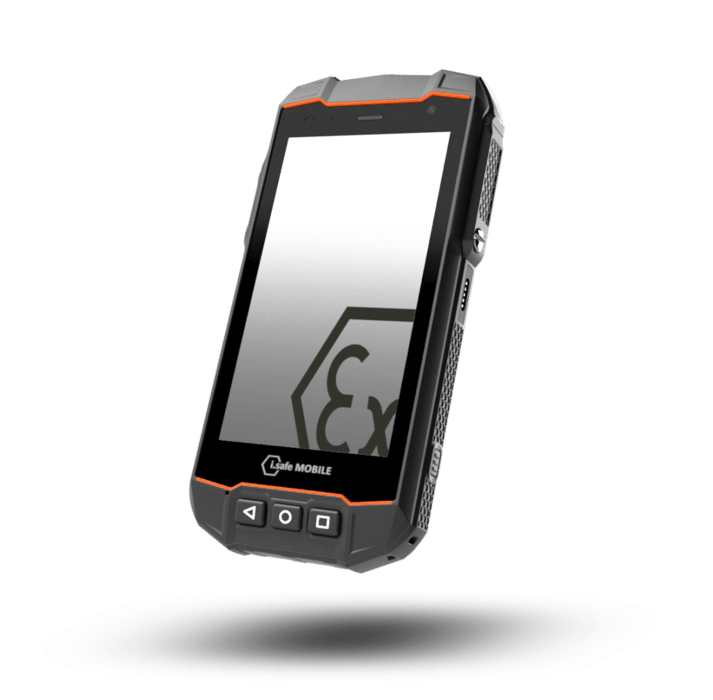

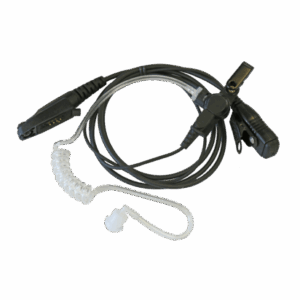

The powerful, particularly dust-proof industrial smartphone for the mining industry can be used in a variety of ways thanks to the ISM interface. Additional modules such as the Push to talk headset IS-HS1.1 or the professional barcode scanner IS-TH1xx.M1 make the IS530.M1 a high-performance multifunctional device. The smartphone is Android™ Enterprise Recommended, zero-touch capable and MDM compatible.
Advantages
- Android™ 13
- Very high level of safety in the mining sector with the risk of firedamp
- Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
- Android Enterprise Recommended
- Zero-touch capable
- MDM compatible
Technical Features
| Operating system | Android™ 13 |
|---|---|
| Processor | Qualcomm® Snapdragon SDM660 Octa Core |
| Memory | 4 GB RAM 64 GB internal memory microSD to 128 GB |
| Frequencies | 2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39 |
| Dimensions | Size: 155,3 x 76,7 x 25 mm Weight: 325 g |
| Display | 4,5″ (11,43 cm) Corning® Gorilla® Glass V3 usable with gloves |
| Battery | 3600 mAh, 3,8 V replaceable |
| Camera | 13 MP AF rear 5 MP FF front |
| Connectivity | Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C |
Certifications
ATEX Mining (Europe) approved
I M1 Ex ia I Ma IP64
IECEx Mining (International) approved
Ex ia I Ma IP64
What’s in the box
- Smartphone

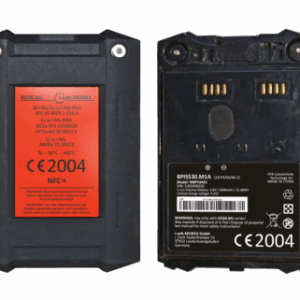

- Battery

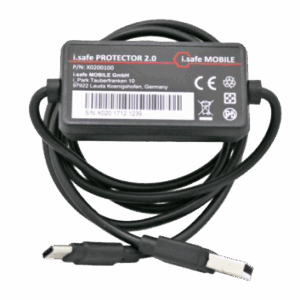

- i.safe PROTECTOR 2.0

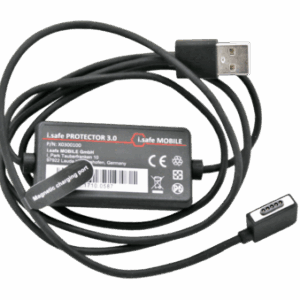

- i.safe PROTECTOR 3.0
- Power Adapter universal
- Screwdriver

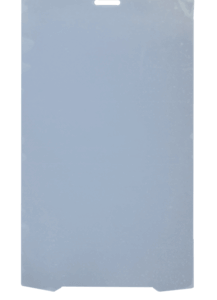

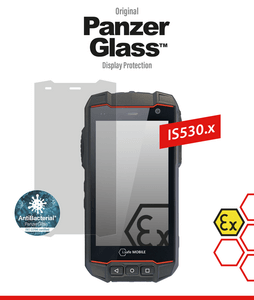

- Display Protection Foil
- Safety Instructions
- Quick Start Manual
